[TUTORIAL] DNS-323 2-Bay Network Storage Enclosure Empty [TUTORIAL] DNS-323 2-Bay Network Storage Enclosure

Post by L1Technician on Tue Sep 08, 2009 10:18 am

Package Content
[TUTORIAL] DNS-323 2-Bay Network Storage Enclosure Packag10

Front View
[TUTORIAL] DNS-323 2-Bay Network Storage Enclosure Dns32310

Front View with SATA drive
[TUTORIAL] DNS-323 2-Bay Network Storage Enclosure Dns32312

Back View
[TUTORIAL] DNS-323 2-Bay Network Storage Enclosure Dns32313

Back View with (Power cord, Ethernet cable & USB cable) connected
[TUTORIAL] DNS-323 2-Bay Network Storage Enclosure Dns32311


Product Info:

SATA Drive Support
Internet Access via FTP
UPnP AV for Storing and Streaming Media Files
10/100/1000 Gigabit Ethernet Port
USB Print Server Port
Built-In Fan Included
L1Technician
L1Technician

Posts : 32
Join date : 2009-09-05
Age : 36
Location : Eastwood, Libis, Quezon City

http://www.boholairsoft.com | www.carmenanon.com

Back to top Go down

[TUTORIAL] DNS-323 2-Bay Network Storage Enclosure Empty Re: [TUTORIAL] DNS-323 2-Bay Network Storage Enclosure

Post by L1Technician on Tue Sep 08, 2009 10:20 am

How do I setup an FTP server behind a router on the DNS-323?



Step 1: Log into the DNS-323 configuration.

[TUTORIAL] DNS-323 2-Bay Network Storage Enclosure Login

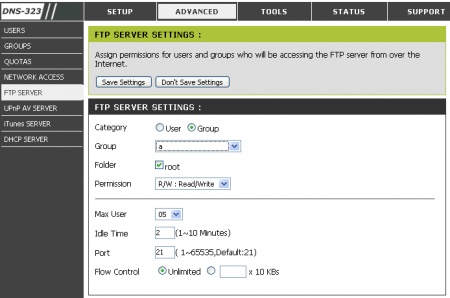

Step 2: Click on the Advanced tab and select FTP Server. Setup you users FTP Server Settings for user access and Save settings.

[TUTORIAL] DNS-323 2-Bay Network Storage Enclosure Ftp_us10


Step 3: Start the FTP server.

[TUTORIAL] DNS-323 2-Bay Network Storage Enclosure StartFTP


If you are behind a router, you will need to forward the FTP port from the router to the DNS-323. Additional filtering and firewall settings may need to be modified on your router to allow FTP Access to the DNS-323 from the Internet. Once the port has been forwarded on the router, users from the internet will access the FTP server through the WAN IP address of the router (ex ftp://24.68.234.432:21).


Step 4: Setup Port Forwarding rule.

**If you are using a D-Link router, such as the WBR-2310 used in the example below, your port forwarding rule should be similar to the following:

Name - DNS-323_FTP.
IP Address - Enter the IP address of the DNS-323. (ex. 192.168.0.105)
Public Port - 21.
Private Port - 21.
Traffic Type - TCP.

[TUTORIAL] DNS-323 2-Bay Network Storage Enclosure FTP%20router

Step 5: Save settings.
